ACCESS Elevators Removes Barriers and Advances Independence

Call Access Elevator Today to schedule your FREE in home, no obligation estimate
Toll Free : 1-844-WI-LIFTS (945-4387).

Professional Sales, Installation, Rental and Service of a Full Range Of Mobility and Accessibility Equipment from ACCESS Elevator.

Enclosure Vertical Platform Lift

Overview

Lightweight and easy to install, Bruno’s Enclosure vertical platform lift is self-contained and needs no hoistway or shaftway. With full-size Plexiglas door and panel inserts, the Enclosure VPL wheelchair lift is an attractive choice for ADA compliance. Made-in-America.

Application Drawings

ILS-01215: Straight through platform (4′ & 6′), no pit DWG DXF PDF
ILS-01216: Straight through platform (4′ & 6′), pit DWG DXF PDF
ILS-01241: 90o adjacent platform (4′ & 6′), no pit DWG DXF PDF
ILS-01242: 90o adjacent platform (4′ & 6′), pit DWG DXF PDF
ILS-01277: Straight through platform (10′, 12′ & 14′), no pit DWG DXF PDF
ILS-01278: Straight through platform (10′, 12′ & 14′), pit DWG DXF PDF
ILS-01289: Same side platform (10′, 12′ & 14′), no pit DWG DXF PDF
ILS-01290: Same side platform (10′, 12′ & 14′), pit DWG DXF PDF
ILS-01318: 90o adjacent platform (10′, 12′ & 14′), no pit DWG DXF PDF
ILS-01319: 90o adjacent platform (10′, 12′ & 14′), pit DWG DXF PDF
ILS-00938: Top landing gate detail DWG DXF PDF
ILS-00846: Canopy detail DWG DXF PDF

Highlights

  • Access up to 14′
  • 750 lb (340 kg) lifting capacity
  • Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
  • Weather-protected controls and powder-coated paint
  • Keyed, constant pressure platform controls with emergency stop switch and audio/visual alarm
  • Bottom platform safety panel
  • Top/bottom limit switches; upper/lower final limit safety switches
  • Fixed ramp
  • Clear Plexiglas
  • 42″ (1067 mm) high, solid, side platform walls
  • 36″ x 54″ (914 mm x 1372 mm) non-skid platform
  • Power system models VPL-3353B, VPL-3375B: 1/2 hp DC motor (includes 17AH batteries)
    VPL-3310B, VPL-3312B, VPL-3314B: 1 hp DC motor (includes 34AH batteries)
  • Gold Warranty: Two years on major components; one year on parts

Options

  • Top landing gate includes call/send controls with key and mechanical interlock or electrical strike interlock (ESI)
  • Cold weather package recommended if operating in temps below 20oF (-7oC)
  • Several platform sizes and configurations
  • Bronze Plexiglas
  • Paddle controls on the platform
  • Paddle landing controls
  • Power assisted door/gate operator
  • ADA compliant telephone kit

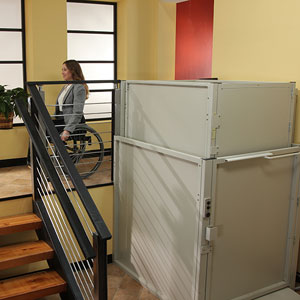

3-Gate Vertical Platform Lift

Overview

Bruno’s 3-gate (Toe-guard) lower enclosure vertical platform lift provides a full barrier at the lower landing with no access under the lift for maximum safety.  Access up to 53 inches with a quiet, smooth ACME screw-driven DC motor with continuous charge battery operation for performance even in power outages.  Made in America.

Planning Documents

Application Drawings

ILS-01155: Enclosed straight through platform – no pit DWG DXF PDF
ILS-01154: Enclosed straight through platform – pit DWG DXF PDF
ILS-00938: Top landing gate detail DWG DXF PDF
ILS-01027: Flush mount door detail DWG DXF PDF
ILS-01194: Flush mount door detail (Aluminum with Plexiglas) DWG DXF PDF
ILS-00846: Canopy detail DWG DXF PDF

Highlights

  • Provides access to 53″
  • 750 lb (340 kg) lifting capacity
  • Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
  • Weather-protected controls and powder-coated paint
  • Keyed, constant pressure controls on platform; emergency stop switch and audio/visual alarm
  • Bottom platform safety panel
  • 42″ (1067 mm) high, solid, side platform walls
  • Top/bottom limit switches; upper/lower final limit safety switches
  • 36″ x 54″ (914 mm x 1372 mm) non-skid platform
  • Fixed ramp
  • Power system model VPL-3353B, 1/2 hp DC motor (includes 17AH batteries)
  • Gold Warranty: Two years on major components; one year on parts

Options

  • Top landing gate includes call/send controls with key and mechanical interlock or electrical strike interlock (ESI)
  • Cold weather package recommended if operating in temps below 20oF (-7oC)
  • “Stay-dry” platform canopy
  • Several platform sizes
  • Paddle controls on the platform
  • Paddle landing controls
  • Flush mount doors with interlock
  • Power assisted door/gate operator
  • ADA compliant telephone kit

Unenclosed Vertical Platform Lift

Overview

Access to stages, porches or short distances are common uses of Bruno’s affordable unenclosed vertical platform lift. Verify that local codes allow for an unenclosed wheelchair lift solution. Made in America quality with weather-protected controls for inside or outside applications.

Planning Documents

Application Drawings

ILS-01102: Straight through platform w/gate – no pit DWG DXF PDF
ILS-01103: Straight through platform w/gate – pit DWG DXF PDF
ILS-01104: 900 adjacent platform w/gate – no pit DWG DXF PDF
ILS-01105: 900 adjacent platform w/gate – pit DWG DXF PDF
ILS-00938: Top landing gate detail DWG DXF PDF
ILS-01027: Flush mount door detail DWG DXF PDF
ILS-01194: Flush mount door detail (Aluminum with Plexiglas) DWG DXF PDF
ILS-00846: Canopy detail DWG DXF PDF

Highlights

  • Provides access up to 60″
  • 750 lb (340 kg) lifting capacity
  • Automatic self-lowering folding ramp
  • Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
  • Keyed, constant pressure platform controls; emergency stop and audio/visual alarm
  • Bottom platform safety panel
  • Top/bottom limit switches; upper/lower final limit safety switches
  • Weather-protected controls and powder coated paint
  • 42″ (1067 mm) high, solid, side platform walls
  • 36″ x 54″ (914 mm x 1372 mm) non-skid platform
  • Power system: models VPL-3353B, 3375B: 1/2 hp DC motor (includes 17AH batteries)
  • Gold Warranty: Two years on major components; one year on parts

Options

  • Top landing gate call/send controls with key and mechanical interlock or electrical strike interface (ESI)
  • Cold weather package recommended if operating in temps below 20oF (-7oC)
  • “Stay-dry” platform canopy
  • Several platform sizes and configurations
  • Paddle controls on the platform
  • Paddle landing controls
  • Flush mount doors with interlock
  • Power assisted door/gate operator
  • ADA compliant telephone kit
  • Platform gate

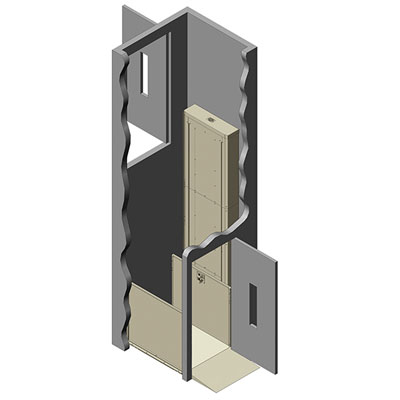

Shaftway/Hoistway Vertical Platform Lift

Overview

Bruno’s Shaftway vertical platform lift is placed inside a shaftway (also known as a hoistway) built by others. Providing access up to 14 ft, the shaftway wheelchair lift includes a drive mast, passenger platform, doors and gates.

Planning Documents

Application Drawings

ILS-01176: Straight through platform – no pit DWG DXF PDF
ILS-01177: Straight through platform – pit DWG DXF PDF
ILS-01178: 900 adjacent platform – no pit DWG DXF PDF
ILS-01179: 900 adjacent platform – pit DWG DXF PDF
ILS-01253: Same side platform – no pit DWG DXF PDF
ILS-01254: Same side platform – pit DWG DXF PDF
ILS-00938: Top landing gate detail DWG DXF PDF
ILS-01027: Flush mount door detail DWG DXF PDF
ILS-01194: Flush mount door detail (Aluminum with Plexiglas) DWG DXF PDF
ILS-00846: Canopy detail DWG DXF PDF

Highlights

  • Provides access up to 14′
  • 750 lb (340 kg) lifting capacity
  • Reliable, quiet ACME screw-driven DC motor with continuous charge battery operation
  • Weather-protected controls and powder-coated paint
  • Keyed, constant pressure platform controls; emergency stop switch & audio/visual alarm
  • Bottom platform safety panel
  • 42″ (1067 mm) high, solid, side platform walls
  • Top/bottom limit switches; upper/lower final limit safety switches
  • 36″ x 54″ (914 mm x 1372 mm) non-skid platform
  • Fixed ramp or pit
  • Power system models VPL-3353B, VPL-3375B: 1/2 hp DC motor (includes 17AH batteries);
    models VPL-3310B, VPL-3312B & VPL-3314B: 1 hp DC motor (includes 34AH batteries)
  • Gold Warranty: Two years on major components; one year on parts

Options

  • Top landing gate includes call/send controls with key and mechanical interlock or electrical strike interlock (ESI)
  • A cold weather package, tested to improve performance to -20º F
  • Several platform sizes and configurations
  • Paddle controls on the platform
  • Paddle landing controls
  • Flush mount doors with interlock
  • Power assisted door/gate operator
  • ADA compliant telephone kit

Savaria

savaria_green_logo

Gearless Elevator Drawings

The following are PDF and DWG files that can be downloaded and are intended for architectural use.

Infinity Elevator Drawings

The following are PDF and DWG files that can be downloaded and are intended for architectural use.

Eclipse Elevator Drawings

The following documents are PDFs and DWG files that can be downloaded and are intended for architectural use.

GARAVENTA LIFT

garaventa-lift

Architect Resources for the Genesis OPAL

Here are the items that are available for download for the Genesis Enclosure vertical platform lift. For more extensive information, please contact Garaventa Lift .

Design Specifications

Design Specifications Download

These two links will create Design Specifications. The 3-part specification is a customizable Word document. The spec wizard allows you to choose options and also creates a customizable Word document, this time with the chosen options included and conflicting options omitted.

Design and Planning Guide

Design and Planing Guide Download

Genesis Enclosure Design and Planning Guide
This guide will help you to identify major system components and space requirements. Structural and electrical requirements are also included.

Imperial CAD Blocks(Plan View)

Imperial CAD Blocks(Elevation View)

Metric CAD Blocks(Plan View)

Metric CAD Blocks(Elevation View)

garaventa-lift

Architect Resources for the Genesis OPAL

Here are the items that are available for download for the Genesis OPAL unenclosed vertical platform lift. For more extensive information, please contact Garaventa Lift

Design Specifications

Design Specifications Download

These two links will create Design Specifications. The 3-part specification is a customizable Word document. The spec wizard allows you to choose options and also creates a customizable Word document, this time with the chosen options included and conflicting options omitted.

Design and Planning Guide

Design and Planing Guide Download

Genesis OPAL Design and Planning Guide
This guide will help you to identify major system components and space requirements. Structural and electrical requirements are also included.

Imperial CAD Blocks(Plan View)

Metric CAD Blocks(Plan View)

Architect Resources for the Elvoron LULA (Limited Use / Limited Application) Elevator

Here are the items that are available for download for the Elvoron LULA Elevator. For more extensive information, please contact Garaventa Lift .

Design Specifications

Design Specifications Download

Elvoron LULA Design Specifications
This link will create Design Specification. The 3-part specification is a customizable Word document.

Design and Planning Guide

Design and Planing Guide Download

Elvoron LULA Elevator Design and Planning Guide
This guide will help you to identify major system components and space requirements. Structural and electrical requirements are also included.

CAD Blocks(Metric)

CAD Blocks(Imperial)

Luxury Lift LLT 950 – Traction Elevator

Home Elevator Plans and Specifications (Adobe Reader or Autocad)

Traction- Various Drawings PDF DWG
Traction hoistway elevation (typ.) HOR01 HOR01
Hoistway framing structural requirements,isometric view, Home Elevator 3″ x 5″ Rule Framers N / A
Home Elevator 3″ x 5″ Rule (Safety) 3″ x 5″ Rule N / A
Home Elevator 3/4″ x 4″ Rule (Safety) – FLA 3/4″ x 4″ Rule N / A
Home Elevator 3/4″ x 3″ Rule (Safety) – GA 3/4″ x 3″ Rule N / A
Rail bracket / rail forces HOR04 HOR04
Traction- Access Door Drawings PDF DWG
Access Door Configurations HOR AD01 HOR AD01
Doghouse Application Configurations HOR AD02D1 HOR AD02D1
Doghouse Application – Plan & Elevation HOR AD02D2 HOR AD02D2
Above Hall Door – RH Rail Application HOR AD03 HOR AD03
Opposite Hall Door – LH Rail Application HOR AD04 HOR AD04
Right Adjacent Wall – Rear Mount Rail Application HOR AD05 HOR AD05
Documents PDF DWG
Traction Lift Contractor Specifications – with plans Traction N / A
Work by others Work N / A
Minimum requirements Minimum N / A
General contractor pre-installation checklist Check N / A
Documents – Florida  PDF DWG
2016 Florida Building Code 3013.R321.4 Additions FLA-Code N / A
LLT Min Requirements – Florida FLA-Min N / A
Electrical Requirements – Florida FLA-Elec N / A
Attention Framers – Florida FLA-Framers N / A
HOR 01- hoistway elevation – Florida FLA-HOR01 N / A
HOR HP1 A 12 – Hoistway plan – Florida FLA-HP1 N / A
HOR HP2 A 12 – Hoistway plan – Florida FLA-HP2 N / A
LLT Traction Work By Others – Florida FLA-LLT_Work_Others N / A
LLT Traction Lift Specs – Florida FLA-LLT_Specs N / A
GC Pre-Install Checklist Traction – Florida FLA-Pre-Install_Check N / A

ADA Building Requirements for Elevators

Posted by Leah RileyApr 29, 2016

It is critical to understand the Americans with Disabilities Act (ADA) requirements for elevators when constructing or renovating a place of public accommodation or commercial facility and vertical accessibility is required. At Burnham, we conduct code reviews and site inspections for accessibility compliance and may see elevators that are not designed or installed to comply with the ADA. In this post, we will highlight some of the ADA requirements for elevators.

Understanding the ADA and Local Accessibility RequirementsWhen examining ADA elevator requirements, it is important to understand that the ADA is a federal law that applies throughout the United States.The ADA, enacted in 1990, prohibits discrimination against people with disabilities.Title III of the ADA specifically prohibits discrimination by private entities that operate as places of public accommodation. Newly constructed or altered places of public accommodation and commercial facilities must comply with the ADA.There are also rules implementing the ADA, the 2010 Standards for Accessible Design (2010 Standards) which incorporate the 2004 ADA Accessibility Guidelines (ADAAG) of the U.S. Access Board, the federal agency charged with developing accessibility guidelines. ADAAG contains scoping and technical requirements for new construction and alterations, including requirements for elevators.In addition to being aware of the ADA’s requirements, one must know the accessibility requirements of your state and local jurisdiction. Although state and local accessibility standards are frequently similar to the ADA, they sometimes have different or stricter requirements.Highlights of ADA Requirements for ElevatorsThe ADA requirements for elevators are found in Section 407 of ADAAG Chapter 4: Accessible Routes. Section 206.2.3 of ADAAG Chapter 2: Scoping Requirements specifies some exceptions to the elevator requirements. For example, private buildings that are less than three floors do not have to provide an elevator unless they are a shopping center, professional office or other specified type of use.The requirements below represent some of the elevator standards for new construction or alterations. Less restrictive requirements apply to elevators in existing construction.

  • Every building must have at least one passenger elevator to meet the ADA’s accessibility requirements. Service elevators may be used to comply with the accessibility standards as long as all required elements are included as part of the design. There are options for sizes and door placement to allow a wheelchair user to enter, maneuver to reach the controls, and then exit the elevator.
  • Raised and Braille floor designations must be located on both jambs. Call buttons are required to be either raised or flush and at least three-quarters of an inch in diameter.
  • The buttons both inside and outside of the elevator must be within the regulations’ specified reach range for a wheelchair user. All buttons with numbers must be in ascending order. Raised and Braille designations shall be placed to the left of the control button.
  • There should be visible and verbal signals to indicate which elevator car is available, its direction, and when it has reached a designated floor.
  • The elevator door must remain fully open for at least three seconds in response to a call. The two-way communication device in the elevator cannot be more than 48″ from the floor.

These are just a few of the ADA requirements for elevators. Staying abreast of all the ADA building requirements can be a challenge. However, we at Burnham can help you review building plans and make sure that the elevators and other aspects of your building are ADA compliant.

This post was originally published February 23, 2012, and updated on April 29, 2016, with new information

SOUTHEAST WISCONSIN MAP

SOUTH-CENTRAL WISCONSIN MAP

ILLINOIS MAP
